Product introduction：

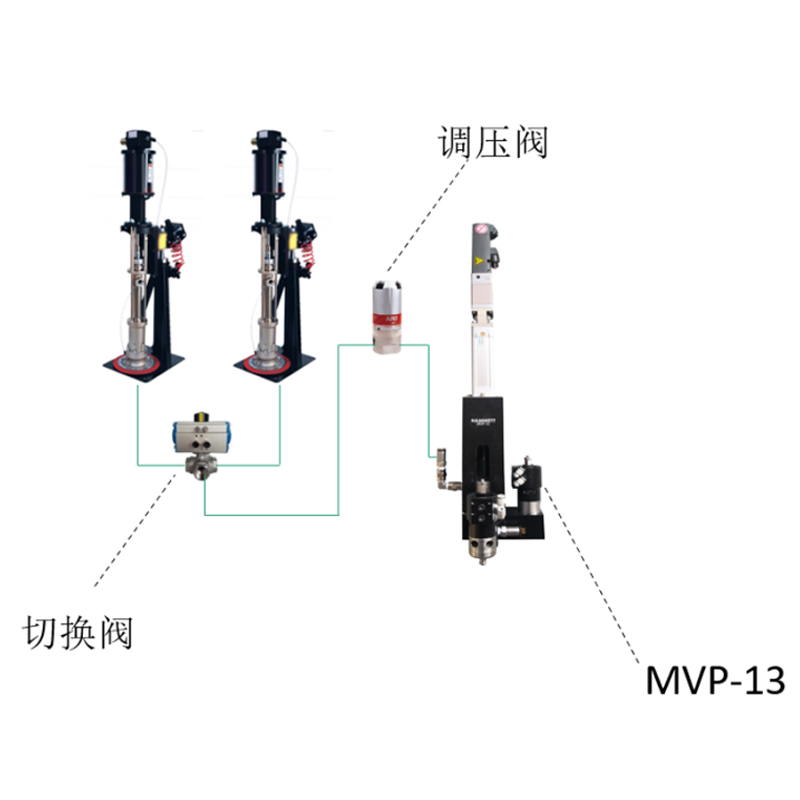

SPZ-HAMT-MVP13-T1B2, the equipment adopts HAMMETT single-component metering cylinder as single-component gunhead metering, which can be placed on the moving mechanism for flexible gluing operation with high flexibility. Like the HAMMETT series products, t

Product parameters:

Cylinder block specification	5	10	20	30	90
Metering volume	0.05~5CC	0.1~10CC	0.2~20CC	0.3~30CC	0.9~90CC
Gluing speed	0.01~1ml/s	0.02~2ml/s	0.04~4ml/s	0.06~6ml/s	0.2~10ml/s
Glue filling time	3s				5s
Supply pressure	100bar
Viscosity range	1~500,000cps
Device power supply	220V/600W
Equipment weight	12kg			13kg	15kg
Application fields: automotive industry, electronic field: engine plane sealant, high thermal conductivity one-component adhesive in product sealing and thermal conductivity process, ultra-high precision brings more perfect experience
